SND5000 Dynamic Image Particle Size and Shape Analyzer |
Function characteristics
● Monitoring capability: 10-2500μm particle size and shape
● Lightweight and portable: small size and light weight, the detection host size is up to 33cm and weighs only 6.5kg
● Ultra-long battery life: built-in battery, can meet more than 10 hours of battery life
● Independent work: the detection host integrates a high-performance embedded processor, no need to configure a PC processor
● Human-computer interaction: 8-inch color screen display, full touch screen operation, measurement and data viewing
● Convenient and easy to use: no complex configuration is required, a USB Type-C cable can achieve measurement and image viewing
● Sheath gas protection: clear imaging, reliable results, strong anti-pollution ability
● No network available: the host integrates WIFI hotspot, and remote measurement can be performed normally without a network
● Convenient communication: multi-function data acquisition communication interface: USB, RS485, WIFI
● Split design: modular design of the detection host and the distributed unit, low maintenance cost
Application Scenarios
Nova SND5000 dynamic image particle size and shape analyzer is suitable for industries such as industry, construction, pharmaceuticals and food. It can be used for particle size and shape detection of materials such as metal powder, coffee powder, and drug powder.
Technical Parameters
NO. | Project | Parameter | Notes |
1 | Measurement range | 10~2500μm |
|
2 | Analysis Type | Dry analysis |
|
3 | Distributed | Large particles (vibration + air flow guidance) Small particles (vibration + pneumatic transmission) |
|
4 | Measuring speed | ≥10000 pcs/min |
|
5 | Repeatability error | ≤1% (D50 deviation of national standard sample) |
|
6 | Accuracy Error | ≤1% (D50 deviation of national standard sample) |
|
7 | Measurement parameters | Particle size (equivalent spherical diameter, Feret diameter, particle size distribution, etc.) Particle shape (particle image, circularity, aspect ratio, etc.) |
|
8 | Onboard processor | High-performance 8-core 64-bit processor |
|
9 | Screen Display | Detection host: 8 inches Distributed unit: 2.8 inches |
|
10 | Communication | USB、RS485、WIFI |
|
11 | Communication Protocol | Modbus-RTU |
|
12 | Power supply | 16.8VDC-3A |
|
13 | Battery life | Detection host: 15000mAh Distributed unit: 3400mAh | Can work continuously for 10 hours |
14 | Work Environment | Temperature -20~60℃, humidity 0~95%RH Atmospheric pressure 86KPa~110KPa | No condensation |
15 | Size | Detection host: 328×293×181mm Distributed unit: 145×261×245mm |
|
16 | Weight | Detection host: 6.5kg Distributed unit: 3.5kg |
|
Features

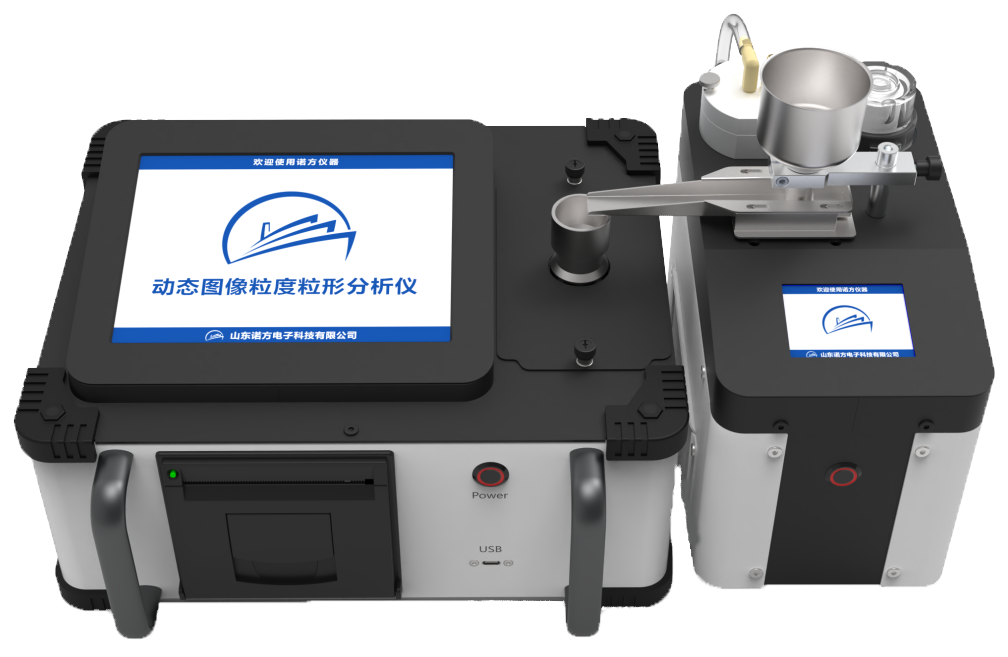

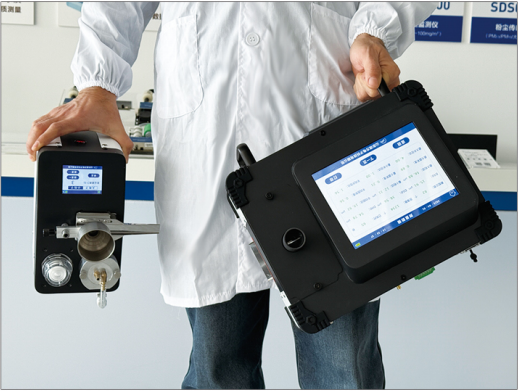

SND5000 dynamic image particle size analyzer is compact and portable |
SND5000 dynamic image particle size analyzer is embedded and integrated, and can work independently |

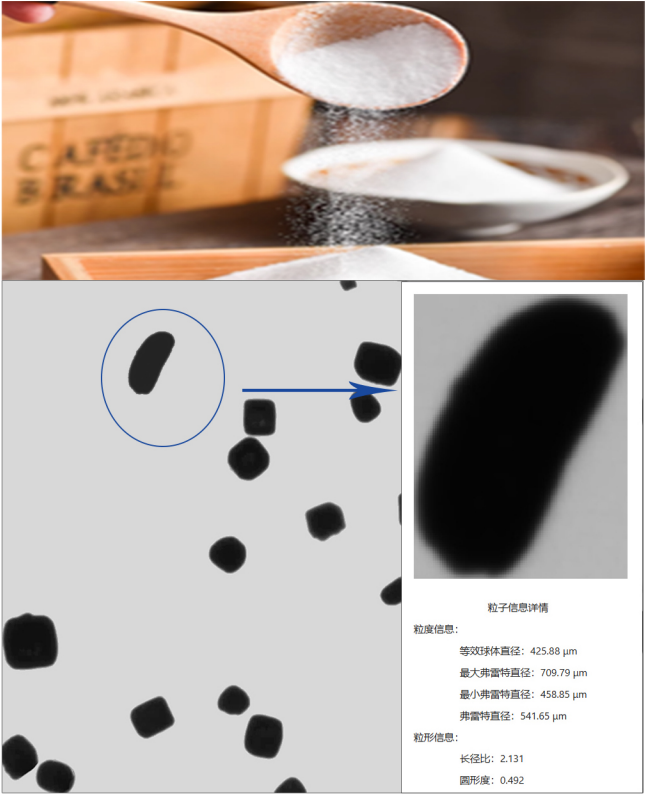

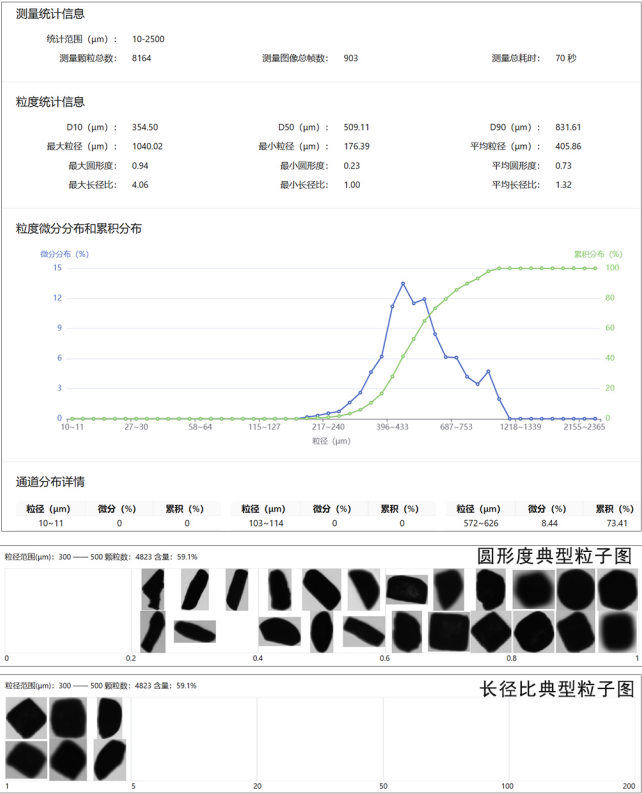

SND5000 dynamic imaging particle size analyzer can provide high-definition imaging and single particle analysis |
SND5000 dynamic imaging particle size analyzer can provide high-definition imaging and single particle analysis |
