 True 0.1μm
 8-channels
 Extremely long battery life
Wireless transmission |  |
Function characteristics
l Accurate data : Single particle laser scattering principle, industrial-grade laser light source. High counting efficiency, good repeatability and consistency .
l Particle size range: Particle size range is 0.1~5μm , ensuring counting efficiency while a single device covers 8 channels.
l High reliability: aerodynamic correction, optical and gas path self-checking, insensitive to vibration, ensuring system reliability and stability .
l Stable flow: standard flow rate is 2.83L/min , it adopts active sampling and is equipped with PID flow control function, which can support stable, long-term, high negative pressure sampling .
l Fast response: data is updated within seconds.
l Human-computer interaction: 8- inch smart touch screen, full touch-screen operation , supports unit switching [granules , granules /m³ , granules /ft³ ] .
l Sampling mode: You can choose to display real-time data and accumulated data , set the sampling time and time interval, and support periodic cycle sampling.
l Convenient communication: multiple data acquisition communication interfaces are standard : USB, RS485, Ethernet , and 4G, LoRa , and Wi-Fi wireless communication are optional . Data can be uploaded to the IoT platform in real time .
l Local storage: supports local storage, storing 5 million data items, and can export files through the Type-C interface .
l Built-in printing: embedded high-speed thermal printer, timely print and record counting results.
l Sound and light alarm: Sound and light alarm is standard , and you can choose cleanliness level alarm or set alarm value yourself .
l Long-lasting battery life: Built-in large-capacity battery, with a battery life of up to 12 hours.
l Circuit safety: with ESD, overvoltage, overcurrent, and reverse connection protection, no radiation source, and no light pollution.
Application scenarios

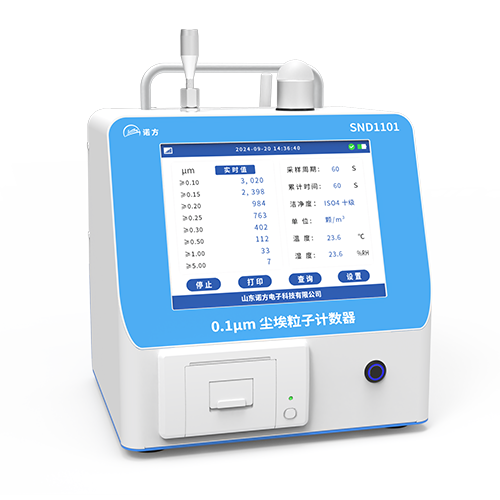

NovaSensor SND1101 2.83L-0.1μm particle counter, widely used in online particle counting detection scenarios in clean room environments such as the semiconductor industry, pharmaceutical industry, electronics industry, food processing industry, and fine processing.
Technical parameter
NO. | Project | Parameter | Notes |
1 | Particle size channel | 0.1μm, 0.15μm, 0.2μm, 0.25μm, 0.3μm, 0.5μm, 1μm, 5μm | 8 channels |
2 | Sampling flow | 2.83L/min |
|
3 | Counting efficiency | 50%@0.1 μm , 100%@particle size>0.15 μm | ISO compliant 21501 - 4 |
4 | Concentration limit | 1,000,000 pieces/ ft³ |
|
5 | Self-cleaning time | ≤ 10 min | The count is zero three times in a row within 10 minutes |
6 | Counting mode | Cumulative counting, real-time counting |
|
7 | Sampling Mode | Continuous sampling, periodic sampling |
|
8 | Sampling time | 20~10000s adjustable |
|
9 | Sampling interval | 10~10000s adjustable |
|
10 |
Laser light source | Long-life laser diodes |
|
11 | Screen Display | 8-inch color touch screen |
|
12 | Printing method | Embedded thermal printing |
|
13 | Communication methods | USB, RS485, Ethernet | Optional wireless communication |
14 | Communication Protocol | Modbus-RTU/TCP |
|
15 | Data storage | 5 million pieces of data | Can be queried and exported |
16 | Power supply | Input AC 100 - 240V ~50/60Hz 1.5A Output DC 16.8V / 3A | hours of standby charging |
17 | Working power | 16W |
|
18 |
Battery life | ≥ 12 hours | 16.8V/15Ah |
19 | Reference Standards | ISO 21501-4, GB T29024.4-2017, JJF 1190-2008 |
|
20 | Work Environment | Temperature 10 ~ 40℃, humidity 20~95%RH | No condensation |
21 | size | 240*230*284mm |
|
22 | weight | 6kg |
|
Calibration certificate
Core sensor calibration certificate
