Function characteristics
● Accurate data: Calibrated with standard particles, highly correlated with beta ray method, fully sampled gas analysis, high measurement accuracy, good repeatability and consistency; Optional dehumidification module to eliminate the impact of water vapor on data
● 4 particle size channels: Capable of monitoring PM1.0, PM2.5, PM10, TSP
● High reliability: Industrial grade laser light source, maintenance free
● Stable flow rate: Sampling flow rate 1L/min
● Fast response: Second level data updates
Application scenarios

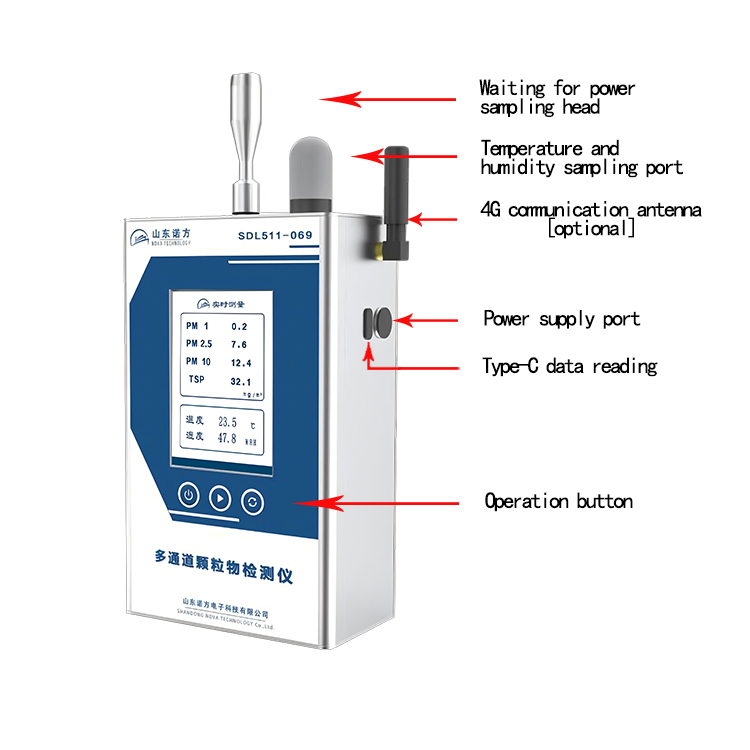

NovaSensor SDL511-069 handheld multi-channel particle detector is suitable for various occasions that require dust concentration monitoring, such as atmospheric environment monitoring, construction sites, road dust monitoring, factory workshops, environmental protection, clean rooms, etc.
Technical parameter
NO. | Project | Parameter | Notes |
1 | Measurement output | PM1.0、PM2.5、PM10、TSP | Mass concentration |
2 | Range | 0~10mg/m3（Detectable 100mg/m3） |
|
3 | Input voltage | DC16.8V/1A |
|
4 | Rated power | 4.1W |
|
5 | Screen size | 3.5 inches |
|
6 | Temperature range | -20~60℃ |
|
7 | Humidity range | 0~99%RH |
|
8 | Atmospheric pressure | 86KPa~110KPA |
|
9 | Response time | 1S |
|
10 | Battery capacity | 14.8V/1.5AH |
|
11 | Interface | USB2.0 |
|
12 | Data Storage | Can store no less than 7 million pieces of data | Export files through USB Type-C port |
13
| Relative error | PM1.0：±10% & ±8μg/m3 MAX PM2.5：±10% & ±8μg/m3 MAX PM10：±10% & ±10μg/m3 MAX PM2.5：±18% & ±30μg/m3 MAX | @25℃，50%RH |
14 | Size | 173*104*63mm | Excluding equal power sampling head |
Operation guidance
SDL511-069 Multi channel Particle Detector Operating Instructions
