SND3100 Aerosol Spectrometer

NovaSensor SND3100 aerosol particle size analyzer, also known as the aerosol particle size detector, is a particle size analysis instrument based on the principle of single particle laser scattering. It supports up to 31 particle size channels and can monitor the mass concentration and particle size distribution of particles in real time.
NovaSensor SND3100 aerosol particle size spectrometer adopts the latest generation of light scattering particle technology from Novo, carefully tuned optical and gas path structures, a new generation of high-frequency weak signal processing circuit, and high-precision particle recognition algorithm. Compared with the previous generation of laser particle size spectrometer, it has significantly improved in particle size recognition range and accuracy, and can better adapt to changes in particle size composition of monitoring objects. It has higher measurement accuracy and particle size resolution for particle size analysis.

product introduction

download

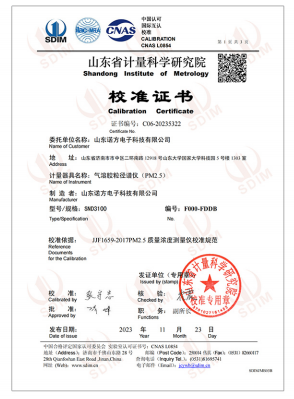

31 channels, full channel calibration

Cost-effective

Real time online, long-term operation

20 hour battery life

SND3100 Aerosol Spectrometer.png

Real time uploading of data to the IoT platform

Function characteristics

● Monitoring capacity: 0.25-35µm mass concentration and particle quantity

● Long term operation: Designed for long time operation, can be 7*24 hours continuous monitoring

● Convenient data collection: Equipped with 4G communication and IoT platform as standard, and multiple data interfaces

● Super long endurance: More than 20 hours of endurance

● Ultra-high capacity storage: 1.5 million pieces of data can be stored in 31 channels

● Circuit protection: Over current, over voltage, anti-reverse protection, 485 anti-need protection

● Easy to operate: 8-inch color display, full touch screen operation, real-time reading

● Strong reliability: Adopting sensor array design

Application scenarios

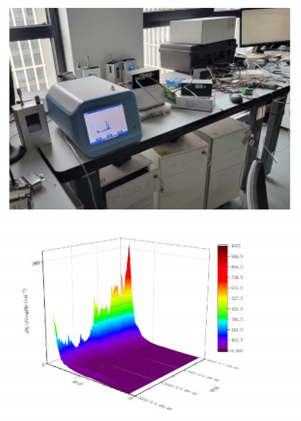

Nova SND3100 aerosol particle size spectrometer is suitable for laboratory atmospheric particle research, powder performance research, smoke particle size analysis, pollution source analysis, migration particle measurement, medical and health testing, factory emission and environmental big data monitoring, clean workshop testing in pharmaceuticals, electronics, food processing, precision processing and other industries.

Technical parameter

NO.	Project	Parameter	Notes
1	Range	0~100mg/m³	TSP
2	Resolution	0.1μg/m³
3	Output channel	0.25μm, 0.3μm, 0.35μm, 0.4μm, 0.5μm, 0.6μm, 0.7μm, 0.8μm, 1μm, 1.1μm, 1.3μm, 1.6μm, 1.8μm, 2.1μm, 2.5μm, 3μm, 3.5μm, 4μm, 5μm, 6μm, 7μm, 8μm, 10μm, 11μm, 13μm, 16μm, 18μm, 22μm, 25μm, 30μm, 35μm
4	Ampling flow	4L/min
5	Temp. Range	-20℃~60℃
6	Humidity range	0~99%RH
7	Working AP	86KPa~110KPa
8	Interface	USB, 4G, RS485, Ethernet
9	Battery flow	15000mAh	Can work more than 20 hours
10	Relative error	±10% & ±8μg/m³ MAX @PM_2.5	@25℃，50%RH
11	Screen size	8 inch

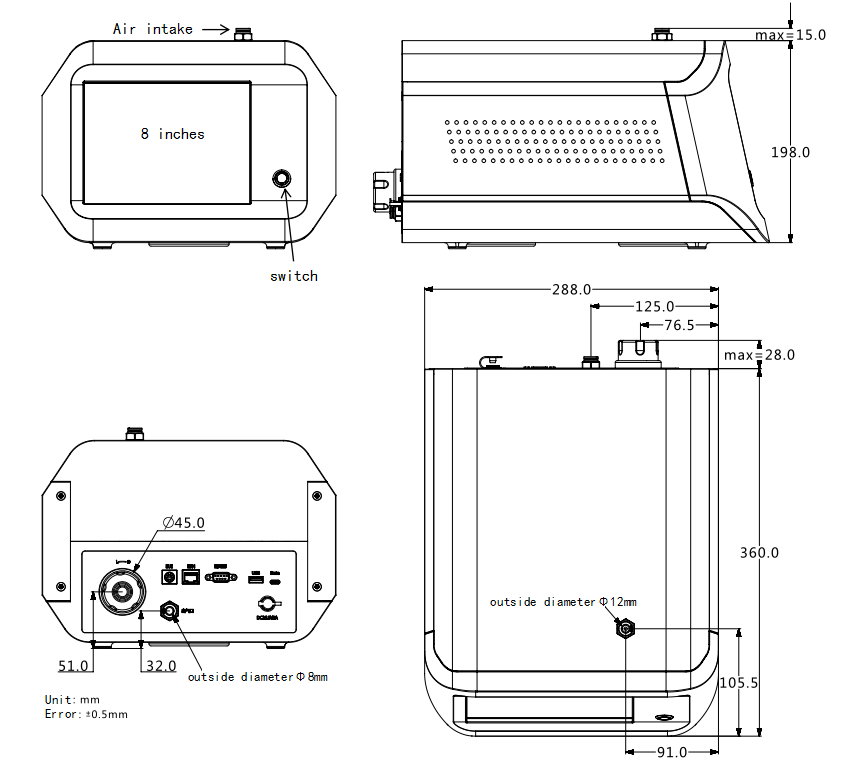

12	Product size	390288219mm
