1、 The hidden dangers and hazards of dust explosions

Dust explosion is a hidden but highly destructive safety hazard in industrial production. When combustible dust (such as flour, coal powder, metal powder, etc.) reaches a certain concentration in the air and encounters open flames, high temperatures, or electrostatic sparks, it may cause violent explosions. The hazards mainly manifest in the following aspects:

Highly destructive: The shock wave and high temperature of dust explosions can cause equipment damage, building collapse, and even trigger chain explosions.

Fast propagation speed: The initial explosion may raise more dust, triggering a secondary explosion and expanding the scope of the disaster.

High risk of casualties: The toxic gases and high temperature environment generated by the explosion may cause serious casualties.

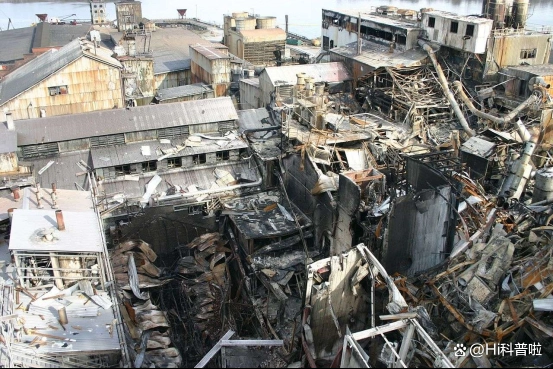

According to the US Chemical Safety Board, there are over 200 industrial accidents caused by dust explosions worldwide each year, with approximately 60% occurring in the food processing, chemical, and metal manufacturing industries. For example, in 2008, a dust explosion at a sugar factory in the United States resulted in 14 deaths and direct economic losses exceeding $100 million. These cases warn us that real-time monitoring and prevention of dust concentration are crucial.

2、 The key to preventing and controlling dust explosions: monitoring dust concentration

The three major conditions for dust explosion are: combustible dust, sufficient oxygen, and ignition source. Among them, dust concentration is the core indicator for prevention and control. According to international standards, the lower explosive limit (LEL) for most combustible dust is 15-60g/m3. Once the concentration approaches or exceeds the threshold, immediate measures must be taken. However, dust particles are small and easy to float, making it difficult for traditional manual detection to achieve real-time monitoring. At this point, dust alarm sensors have become the "first line of defense" to prevent accidents.

3、 Technical advantages of SDS3606 dust alarm sensor

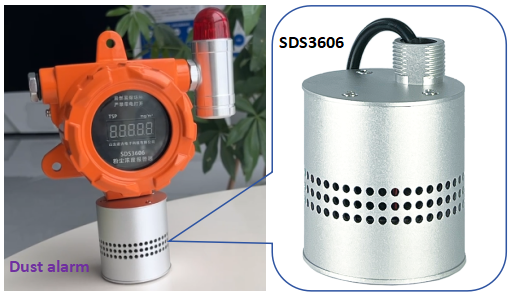

The SDS3606 dust alarm sensor launched by Shandong Nuofang Electronic Technology Co., Ltd. is a specialized sensor for dust alarms, designed specifically for high dust pollution scenarios. Its technical features perfectly meet the needs of safety production:

1. High precision monitoring

• The SDS3606 dust alarm sensor adopts the principle of laser scattering and combines with a high-sensitivity photodetector to accurately detect dust concentrations ranging from 0 to 1000 mg/m3, covering three channels of TSP (total suspended particulate matter), PM2.5, and PM10 data.

• ± 15% relative error (@ 25 ℃, 50% RH) to ensure data reliability and avoid false positives or omissions.

2. Rapid response and real-time warning

• The sensor supports second level data updates and can transmit real-time data to the control center through Modbus RTU protocol. Once the concentration exceeds the standard, the system can immediately trigger an audible and visual alarm, automatically activate ventilation or sprinkler devices, and effectively contain risks.

3. Strong environmental adaptability

• Adopting IP68 protection level sampling fan and aluminum alloy shell, it can work stably in harsh environments of -20 ℃~60 ℃, 0~99% RH, suitable for complex scenarios such as mines, cement plants, flour workshops, etc.

• The 360 ° ambient air intake design and "high dust capacity detection chamber" technology significantly improve the sampling efficiency of large particle dust and avoid data distortion caused by structural dust accumulation.

4. Intelligent management and remote control

• Supports Modbus communication protocol, allowing users to remotely modify device addresses, adjust sampling frequency (1s/time), switch working modes (continuous/intermittent), and calibrate sensor parameters through the upper computer.

• The dust alarm sensor can be started/stopped or put into sleep/wake up through instructions, flexibly controlling the operating status of the equipment, reducing energy consumption, and extending its service life.

5. Easy to maintain and long lifespan

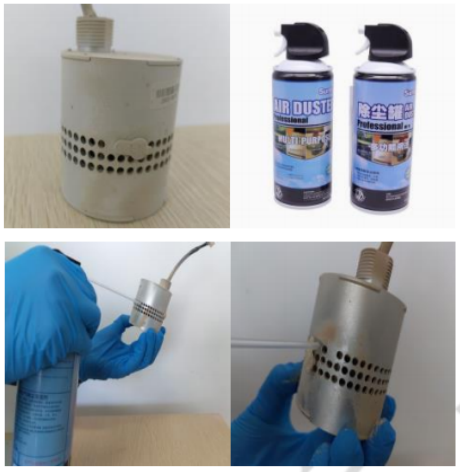

• Equipped with a dedicated maintenance port, users can quickly clean the internal dust accumulation through the high-pressure dust removal tank.

• Laser diodes have a lifespan of up to 3 years (below 40 ℃), significantly reducing equipment replacement frequency and maintenance costs.

4、 The practical application of dust alarm sensors in safety production

①Real time monitoring and warning system

In the flour processing workshop, SDS3606 can be installed in areas prone to dust accumulation, such as near grinding machines and conveyor belts. When the concentration of PM10 exceeds 50 mg/m3, the system automatically starts the exhaust equipment and notifies the safety administrator via SMS.

② Data traceability and accident analysis

The SDS3606 dust alarm sensor supports historical data storage and can be combined with dust concentration change curves to optimize process flow or identify leakage points.

③Emergency linkage control

In a certain chemical plant case, the dust alarm sensor is linked with the fire protection system. When the PM2.5 concentration reaches 80% of the lower explosive limit, the system automatically cuts off the power and releases inert gas, successfully avoiding a potential explosion accident.

5、 Conclusion

The prevention and control of dust explosions is a systematic project that requires a combination of technical means and management measures. The SDS3606 dust alarm sensor provides a reliable monitoring solution for industrial enterprises with its high precision, strong adaptability, and intelligent functions. Through real-time data feedback and rapid response, not only can the risk of explosion be significantly reduced, but the overall safety of the production environment can also be improved. As the proverb in the field of safety production goes: "Invisible dust, visible safety" - only by relying on the power of technology can we truly prevent "burning" before it occurs.
