 Basic config
 Cost-effective
| Wall fan ver SDS039-FS
Long silent lifespan | Wall pump ver SDS039-PS
High negative pressure |
Function characteristics
● Reliable and stable: Aerodynamic correction, self inspection of light and gas paths, insensitive to vibration, ensuring system reliability and stability
● Stable flow rate: flow rate of 2.83L/min, constant flow intake fan, optional PID flow control, supports stable, long-term, high negative pressure active sampling
● Second level response: Second level data update
● Communication interface: RS485 and UART TTL serial outputs; Optional 4G and Ethernet
● Circuit protection: ESD, overcurrent, overvoltage, anti reverse connection protection
● Safe and friendly: Low voltage power supply, no electric shock, no radiation source, no light pollution
● Shell material: Aluminum alloy shell
● Fully automatic measurement: remote control, 7 * 24-hour continuous operation, wireless transmission, real-time data upload to IoT platform
Application scenarios
Nova SDS039 online dust particle counters are widely used in clean room environments such as the pharmaceutical industry, electronics industry, food processing industry, and precision machining for online particle counting and detection scenarios.
Technical parameter
NO. | Project | Parameter | Notes |
1 | Channel | 0.3~10μm 6channels | 0.3μm、0.5μm、1μm、3μm、5μm、10μm |
2 | Range | 4,000,000 pcs/ft3 | When the loss reaches 10% |
3 | Power supply | DC12V[9~25VDC] | Recommended power supply ≥ 12V 2A |
4 | Rated power | 3.5W | @25℃, 50%RH |
5 | Sleep power | 0.6W |
|
6 | Work environment | Temperature: -20~60℃；Humidity: 0~99%RH; Atmospheric pressure: 86KPa~110KPa |
|
7 | Response time | 1S |
|
8 | Interface | RS-485 + UART TTL | Customizable |
9 | Protocol | Modbus-RTU | Customizable |
10 | Counting efficiency | 0.3μm/50% >0.45μm/100% (ISO 21501) | @25℃, 50%RH |
11 | Relative error | ±15% | @25℃,50%RH
|
12 | Hose size | Inside: φ5mm Outside: φ8mm |
|
13 | Lifetime | 3years | ＜40℃ |
14 | Size | 173*104*63mm | Excluding equal power sampling head |
Characteristic display

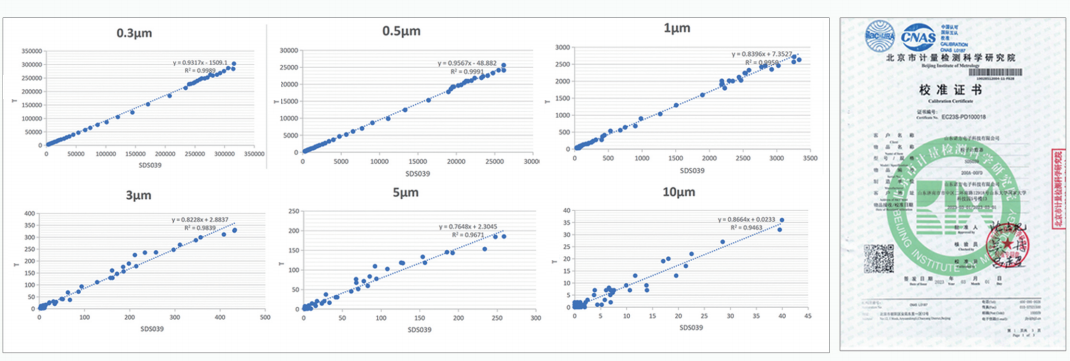

High consistency between online particle counter and imported brand data comparison Calibrated Certificate
