 Strong anti fouling ability
1000mg/m3 large range High concentration monitoring in factory workshops, mines |
|
Function characteristics
● Pollutant-resistance: Air path optical path separation design, greatly improve the anti fouling ability
● Precise operation: All industrial devices, carefully adjust the optical and air structure, high precision
● Reliable operation: Designed for high concentration environment, strong anti-pollution ability
● Easy integration: Small size, using standard communication protocol, easy integration
● Circuit protection: Over current, over voltage, anti-reverse connection protection,485 lightning protection
Application scenarios
Nova SDS036 large-scale industrial dust sensor is suitable for high pollution dust detection scenarios such as coal mines, flour mills, mines, cement plants, power plants, factories, workshops, etc.
Technical parameter
NO. | Project | Parameter | Notes |
1 | Range | 0~1000mg/m3 |
|
2 | Measuring output | TSP |
|
3 | Power supply | DC12V[9~25VDC] | Power supply≥12V2A |
4 | Power | 1.2W |
|
5 | Temp. Range | -20℃~60℃ |
|
6 | Humidity range | 0~99%RH |
|
7 | Working AP | 86KPa~110KPa |
|
8 | Interface | RS485+UART TTL |
|
9 | Protocol | Modbus-RTU |
|
10 | Lifetime | 3 years | Below 40℃ |
11 | Relative error | ±20% & ±100μg/m3 MAX | @25℃，50%RH |
12 | Esponse time | 1S |
|
13 | Size | 125*92.5*66mm |
|
Characteristic display
The correlation between weighing and test data is high |

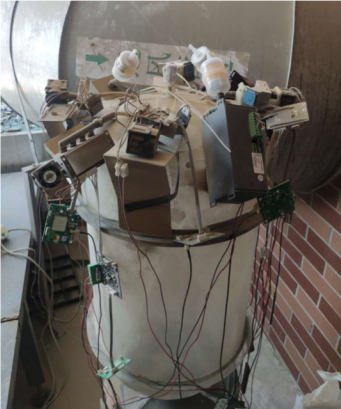

Reliable performance in high concentration limit testing |
According to」JG846--2015 Dust Concentration Measuring Instruments regulations weighing method calibration |
