 Sheath gas pollution

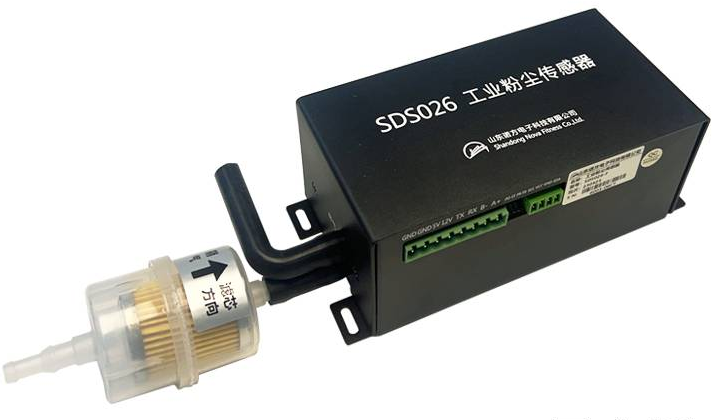

3 channels CPA Certification | Fan ver SDS026-F

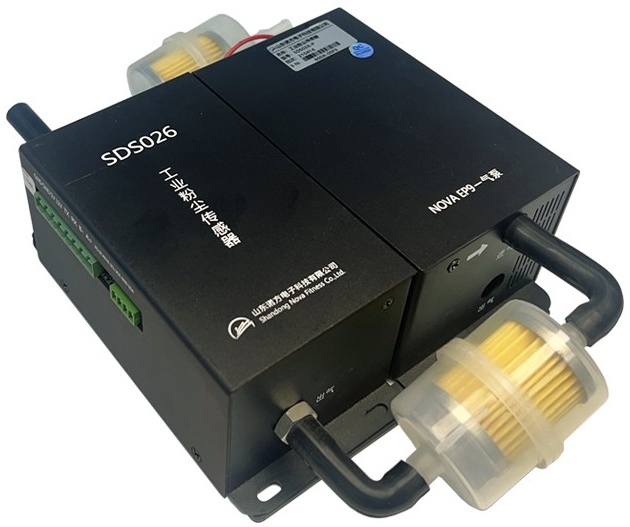

Long silent lifespan Low maintenance | Air pump ver SDS026-P
Anti wind disturbance High negative pressure |
Function characteristics
● High cost performance: larger range, with sheath gas protection
● 3 channel output: can monitor PM2.5/PM10/TSP three parameters
● Long-life: Full industrial grade device, life of 20,000 hours
● Two sampling methods are available: fan or air pump
● Circuit protection: over current, over voltage, anti-reverse connection protection, 485 lightning protection
Application scenarios
Nova SDS026 industrial dust sensor is widely used in construction sites, road dust detection, high pollution enterprise boundary monitoring, industrial workshops, environmental big data dust monitoring and other scenarios.
Technical parameter
NO.
| Project | Parameter | Notes
|
SDS026-F
| SDS026-P |
1 | Range | PM2.5: 0.0~20.0mg/m3 PM10: 0.0~50.0mg/m3 TSP: 0.0~100.0mg/m3 |
|
2 | Power supply | DC12V [9~25VDC] |
|
3 | Sleep power | 0. 24 W |
|
4 | Humidity range | 0~99%RH |
|
5 | Working AP | 86KPa~110KPa |
|
6 | Esponse time | 1S |
|
7 | Interface | RS-485 + UART TTL | Customizable |
8 | Protocol | Modbus-RTU | Customizable |
9 | Counting efficiency | PM2.5: 70%@0.3µm 98%@0.5µm PM10: 70%@0.3µm 98%@0.5µm TSP: 70%@0.7µm 98%@1.0µm | @25℃，50%RH |
10 | Relative error | PM2.5: ±10% & ±8µg/m3 MAX PM10: ±15% & ±10µg/m3 MAX TSP: ±18% & ±30µg/m3 MAX | @25℃，50%RH |
11 | Hose size | Inside diameter: φ8mm; Outside diameter: φ12mm |
|
12 | Lifetime | 3 years | Excluding air pump: Below 40℃ |
13 | Power | 3W | 4W |
|
14 | Temp. Range | -20~60℃ | -20~55℃ |
|
15 | Size | 150*78*65mm | 130*160*68mm |
|
Characteristic display
