Function characteristics
● Accurate data: laser detection, reliable
● Fast response: Data update frequency is 1 Hz
● Easy integration: Serial port output (or 10 port output can be customized), comes with a fan
● High resolution: The minimum diameter of the resolution of the particles reaches 1 μm
● Standard authentication: CE/FCC/RoHS certification
Application scenarios
Nova SDS198 TSP sensor is suitable for TSP monitoring, dust monitoring, purification monitoring, and environmental monitoring of roads, factories, mines, stone processing plants, and construction sites.
Technical parameter
NO. | Project | Parameter | Notes |
1 | Measuring output | TSP |
|
2 | Range | 0~20mg/m3
|
|
3 | Rated voltage | 5V |
|
4 | Rated current | 90mA±10mA |
|
5 | Sleep current | ＜4mA | Laser and fan stop working |
6 | Temp. Range | Storage environment: -20~60℃ Work environment: -10~50℃ |
|
7 | Humidity range | Storage environment: Maximum 90%RH Work environment: Maximum 70%RH |
|
8 | Esponse time | 1S |
|
9 | Working AP | 86KPa~110KPa |
|
10 | Serial port output frequency | 1Hz |
|
11 | Sensitivity | 1μg/m3 |
|
12 | Relative error | ±20% & ±30µg/m3 MAX | @25℃，50%RH |
13 | Product size | 71*70*23mm |
|

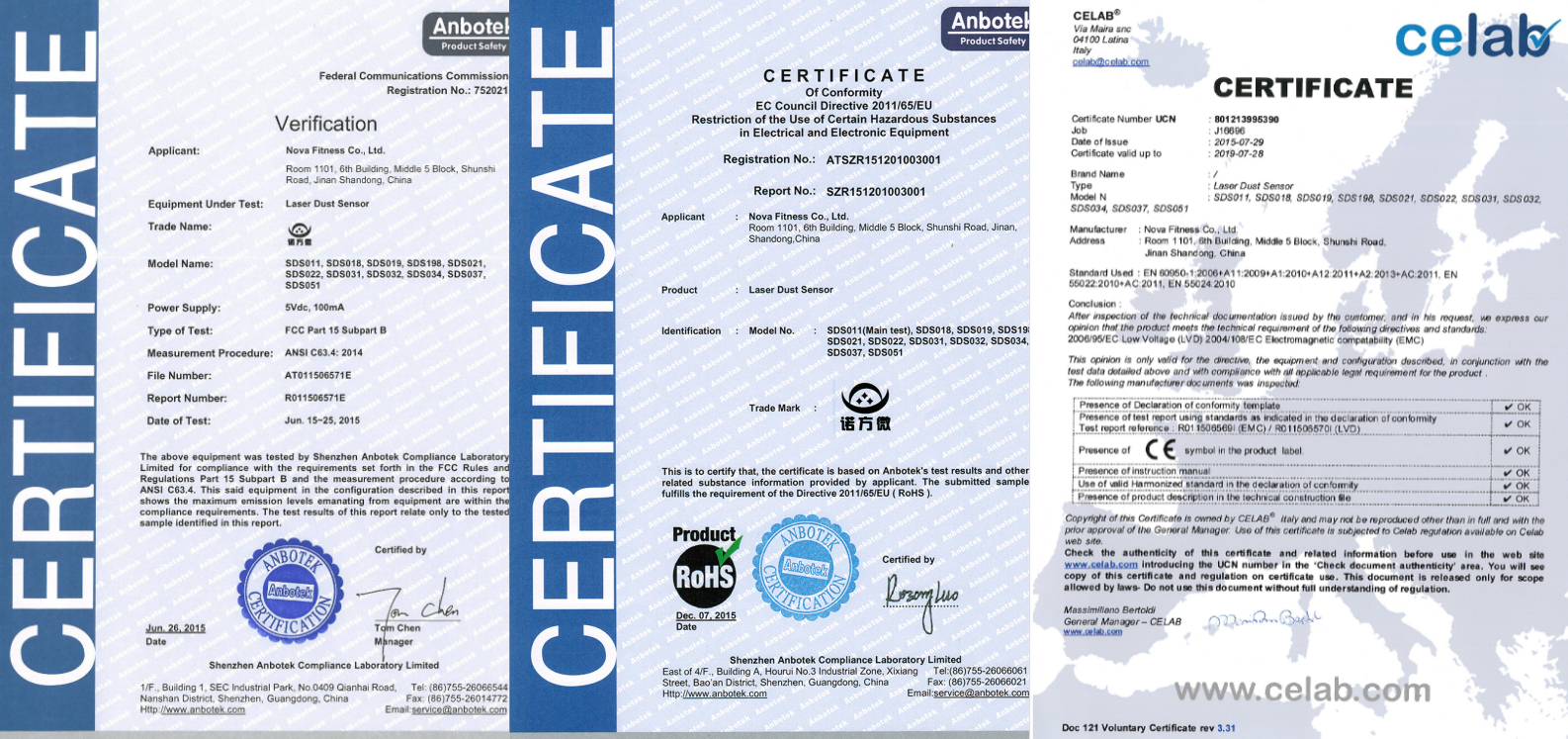

Authentication certificate
